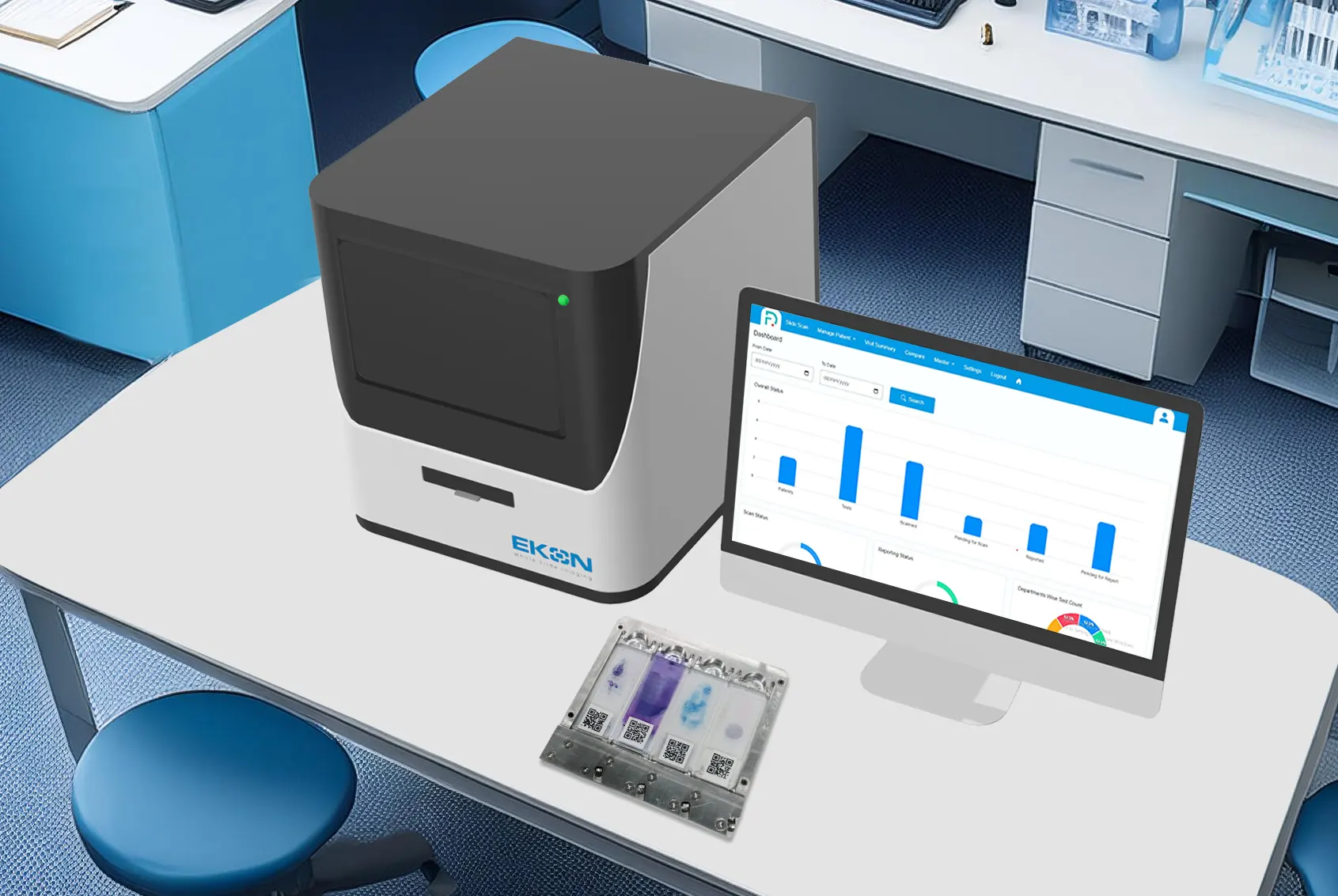

A lab setup with EKON device accompanied by a monitor displaying bar graphs and slide tray with inserted slides containing samples
EKON Whole Slide Imaging Scanner Transforming Pathology with Precision and Speed

EKON’s full pledged team is dedicated to revolutionizing the way pathology is performed. EKON Whole Slide Image (WSI) scanners offer high-resolution, digital scanning of entire range of Microscopy slides, allowing Pathologists to view, analyze and report slides with unparalleled clarity and accuracy.

Key features of EKON
Standalone Whole Slide Imaging (WSI) Device
  • In-built LIS, QR Code print, High-Resolution Image Viewing, Reporting, Report Printing and Telepathology modules
High-Resolution Scanning
  • Detail Preservation: 40x magnification, allowing pathologists to observe cellular-level details.
  • Gigapixel Imaging: Each scan can produce gigapixel-sized images, ensuring no detail is missed
Automated Slide Handling
  • Batch Scanning: 4 slides in a batch
    • Stage 1 - Auto align the slides
    • Stage 2 - Auto focus the slides
    • Stage 3 - Automatic Scanning
    • Stage 4 - Scan Completion
    • Stage 5 - Automatic Slide Ejection
  • QR Code Scanning: Automatic QR Code reader can scan patient details directly from slide labels, integrating the data with a laboratory information system (LIS).
  • Slides from multiple departments can be scanned in a single batch.
Fast Scanning Speed
  • High Throughput: 180 seconds scan time per slide
  • Total outcome of 4 slides would be 480 Seconds ait max includes any departments slides
Departments
  • Histopathology
  • Cytology
  • Hematology
Focus
  • Autofocus Technology
  • Deep Zoom Image file for Pyramid view
Color Calibration and Image Quality
  • Color Fidelity: Auto color calibration
  • Auto Whitebalancing
  • Noise Reduction: Sophisticated algorithms help reduce noise in the image, enhancing clarity.
Magnification
  • 40X Zoom Capability: with ROI scan for detailed examination
File Formats and Image Management
  • DZI and JPG: with no loss of data.
  • Data Compression: Lossless or near-lossless compression to manage the large file sizes generated by high-resolution scans.
  • Cloud Storage Supports local storage , private cloud & Third - party cloud integration
  • LIS Integration Supports Third- party LIS/HIS API Integration
In-built Image viewer with Annotation Tools
  • In-built image viewer to view High Resolution images quickly
  • Zoom Magnification with Scale Bar
  • Deep Zoom Image (DZI )with pyramid view technology Automatic white balancing
  • Image Annotation tools
Scanning
  • Scan area : Fixed ( 15mm x 15mm ) or ROI scan
  • All slides or Selective slides scan
Device body
  • Medical grade anodized Aluminium
  • Medical grade Stainless Steel
  • Polycarbonate outer cover
  • Structured Electrical wiring
  • Limit sensors
  • Shock absorbers to handle vibrations during scanning
Illumination
  • Bright Field LED 10 W
  • Correlated Color Temperature (CCT):5000K
  • Color Rendering Index (CRI) : ≥90
  • 124LuMens per Watt
  • Broadband Anti-Reflection (BBAR) coatings < 0.5%
  • Wavelength : 350-700nm
  • LED AC-DC driver (IP66 rated)
Unique Feature
  • Integrated Lite LIS
  • 180-second Scan Turnaround Time
  • Cross-Department Slide Scanning
Technical Specifications
Components
Objective Lens

- 40x Objective

Scanning Time

- 180 seconds

Sample Position

- Auto Positioning

Focusing

- AI Assisted Auto Focusing

Light source

- Cool bright LED

Camera

- Sony IMX High-Resolution CMOS Digital Camera

QR Code Camera

- In built

Slide Tray

- Self locking slide tray

In-built Computer
Storage

- 256 GB SSD(OS)+4TB Internal Storage

Calibration
White balancing

- Automatic

Positioning

- Automatic

QC Check

- Automatic check for every scan

Power and Temperature
Input Power

- AC110 -240V, 50/60Hz

Operating temp.

- Upto 50°C

Warranty
Warranty

- 1 year comprehensive warranty
